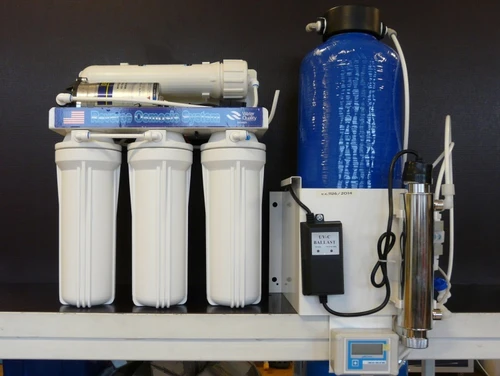

GORO PHARMAPUR is a small complet with direct water consumption used to prepare water for pharmacies and elsewhere where quality is requested by ČL 2009. First purification step is made of GORO AQUA 35/65 or 100 with a pressure vessel that contains ion exchange resin. Then the water is treated by UV sterilization. Output conductivity measurment is provided by a diode comparator or optionally (for a fare) by a digital conductivity meter. The figure next to Pharmapur sign is the estimated consumption in 24 hours.
- Pre-treatment: GORO AQUA 65,100
|
Specifications of GORO Pharmapur 50:
Size: |
550 x 270 x 280 mm |
Outlet water: |
according to ČL 2009 |
Device contains: |
GORO AQUA 65 |
|
Pressure container (12 l) |
|
UV lamp |
|
Comparitive conductivity meter |
|
˟ Digital conductivity meter for extra charge |
|
˟ Mikrobiological filter for extra charge |
|
Technical specifications of GORO AQUA 65:
Size in mm: |
496 x 180 x 420 |
Weight: |
8 kg |
Performance of RO: |
10 l/h |
Operational pressure: |
independent |
Overall water use: |
20 - 30 % |
Effectivity of removing impurities: |
97 - 99 % |
Conversion of RO: |
1:4 |
Pressure gradient of RO: |
0,05 MPa |
Inlet water: |
drinking water |
|
Technical specifications of GORO AQUA 100:
Size in mm: |
580 x 400 x 240 |
Performance: |
20 l/h |
Voltage: |
220/240 V // 50/60 Hz |
Color: |
White |
Contains: |
Supporting construction |
|
3 x filtering container of size 10" |
|
Membrane of RO |
|
Auxiliary pump |
|
Low pressure switch |
|
Hight pressure switch |
|
Manometer |
|
