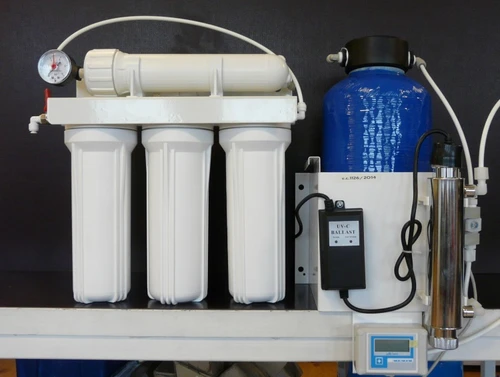

GORO PHARMAPUR is a small complet with direct water consumption used to prepare water for pharmacies and elsewhere where quality is requested by ČL 2009. First purification step is made of GORO AQUA 35/65 or 100 with a pressure vessel that contains ion exchange resin. Then the water is treated by UV sterilization. Output conductivity measurment is provided by a diode comparator or optionally (for a fare) by a digital conductivity meter. The figure next to Pharmapur sign is the estimated consumption in 24 hours.
- Pre-treatment: GORO AQUA 35
|
Specification of GORO Pharmapur 20:
| Size: |
550 x 270 x 280 mm |
| Outlet water: |
according to ČL 2009 |
| Device contains: |
GORO AQUA 35 |
|
Pressure container (6 l) |
|
UV lamp |
|
Comparitive conductivity meter |
|
˟ Digital conductivity meter for extra charge |
|
˟ Mikrobiological filter for extra charge |
|
Technical specification of GORO AQUA 35:
| Size in mm: |
496 x 180 x 420 |
| Weight: |
8 kg |
| Performance of RO: |
4 l/h |
| Operational pressure: |
3,5 bar |
| Overall water use: |
20 - 30 % |
| Effectivity of removing impurities: |
97 - 99 % |
| Conversion of RO: |
1:4 |
| Pressure gradient of RO: |
0,05 MPa |
| Inlet water: |
drinking water (according to ČSL) |
|
