GORO AQUA COMPLET 35, 65

rrr

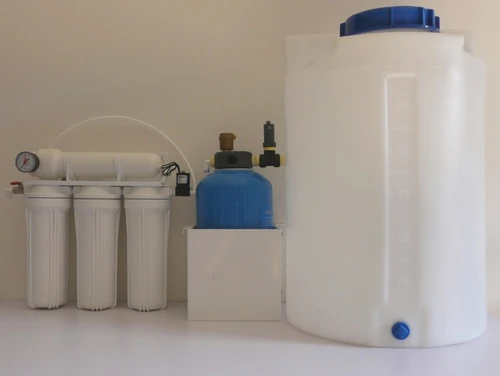

Reverse osmosis GORO AQUA COMPLET 35/65 produces water up to 1 uS (ISO 3696 type 2). The capacity of GORO AQUA 35 is 4 liters per hour for GORO AQUA 65 is performance 10 liters per hour. The size of the tank (tank) is available in the range of 10 to 200 liters.

Reverse osmosis AQUA 65/35 produces demineralized water through the water line pressure.

Reverse osmosis equipment is put into operation or shut down by opening or closing the inlet ball valve on the filter.



Composition:

  • Beam
  • Auxiliary pump
  • 3x container for the filtrating pad of size 10"
  • 3 x filtrating pad 10"
  • Container for the membrane of RO
  • Membrane of RO
  • Manometer
  • Tube
  • Valve



Technical specifications:

Size in mm: 496 x 180 x 420
Weight: 8 kg
Tank capacity: 10 - 200 liters
Performance of RO: 4 / 10 l/h
Operational pressure: independent
Overall water use: 20 - 30 %
Effectivity of removing impurities: 97 - 99 %
Conversion of RO: 1:4
Pressure gradient of RO: 0,05 MPa
Inlet water: drinking water ( according to ČSL)



CAUTION: To be used only for the water filtration (input water is drinking water according to ČSN) operational pressure of reverse osmosis has to be min. 0,30MPa and max. 1MPa with water temperature min. 5°C and max. 38°C. Protect against impact, never let the temperature drop under 0°C. Do not expose to effects of vacuum and to effects of corosive liquids and gases.This water is not drinkable and is not suitable for making any kind of drinks. If the device is switched off, operation for at least 60 minutes every 7 days is required.RO is sensitive to high levels of Fe, Mn, Cl and the high hardness of water. Do not sanitize, it can destroy carbon filters and membrane, do not use service valve behind the modul of the reverse osmosis.
